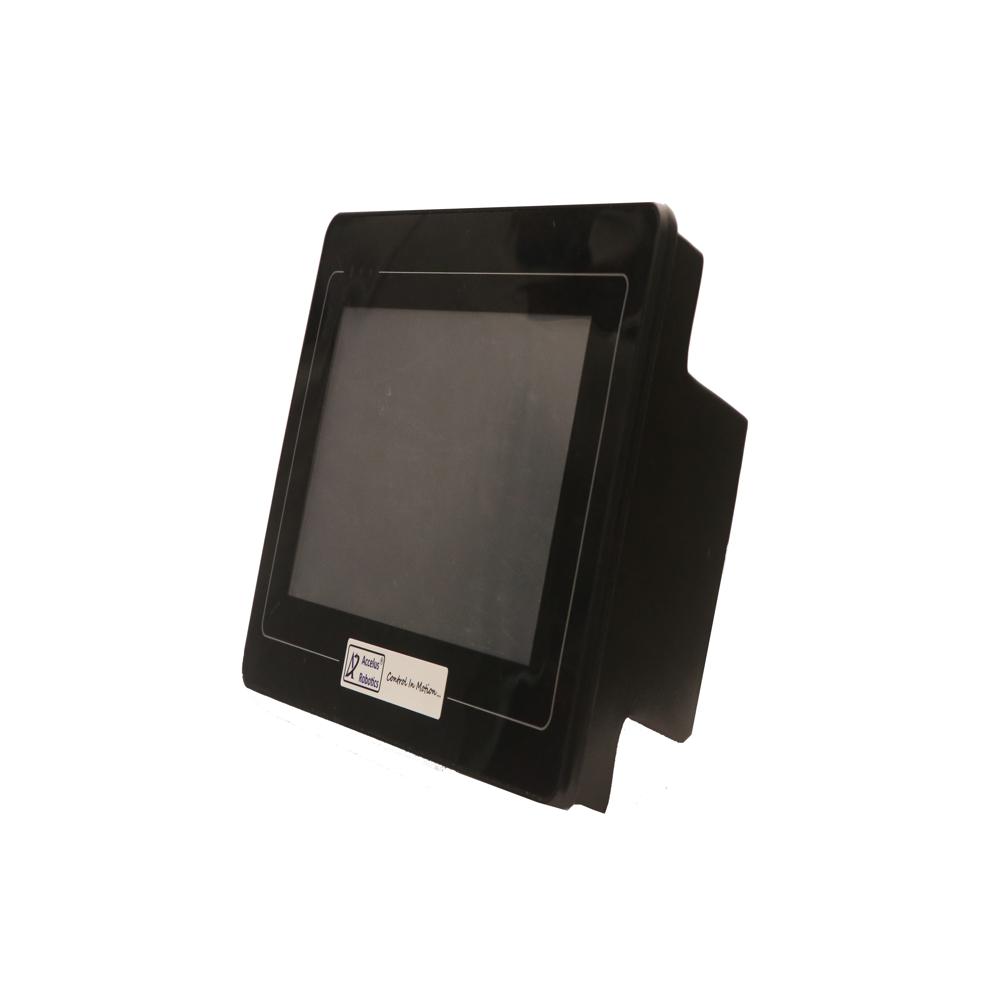

3 Axis Motion Controller

About 3 Axis Motion Controller

Our advanced motion controller is designed to provide precise control for applications requiring coordinated motion with multiple inputs and outputs. Engineered for reliability and efficiency, it supports two motors, making it ideal for robotics, CNC machinery, and automation systems.

Dual Motor Control:
o Supports two motors for synchronized movement, enabling complex applications such as 2-axis systems or multi-step processes.
o Each motor can be independently controlled for precise speed, direction, and positioning.

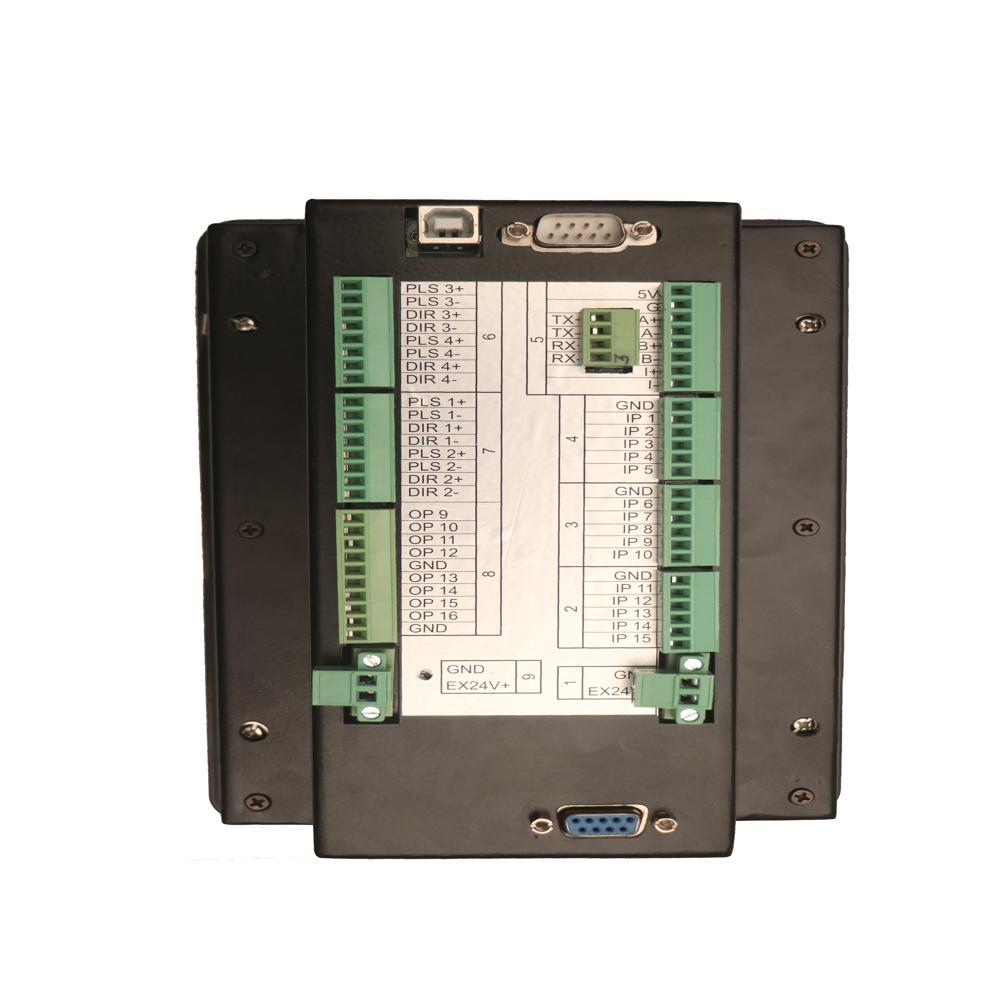

16 NPN Inputs:
o Features 16 NPN inputs for easy integration with sensors, limit switches, and other devices.
o Enables real-time feedback and monitoring of system conditions, enhancing operational safety and efficiency.

12 NPN Outputs:
o Equipped with 12 NPN outputs to drive external devices such as relays, actuators, and indicator lights.
o Facilitates control of peripheral equipment, allowing for expanded functionality and automated workflows.

External Encoder / MPG Support:
o Allows connection of external encoders or Manual Pulse Generators (MPG) for intuitive manual control and precise positioning.
o The MPG feature facilitates easy movement adjustments, making it user-friendly for manual operations and fine-tuning setups.
o Provides real-time position feedback to enhance accuracy and responsiveness in motion tasks.

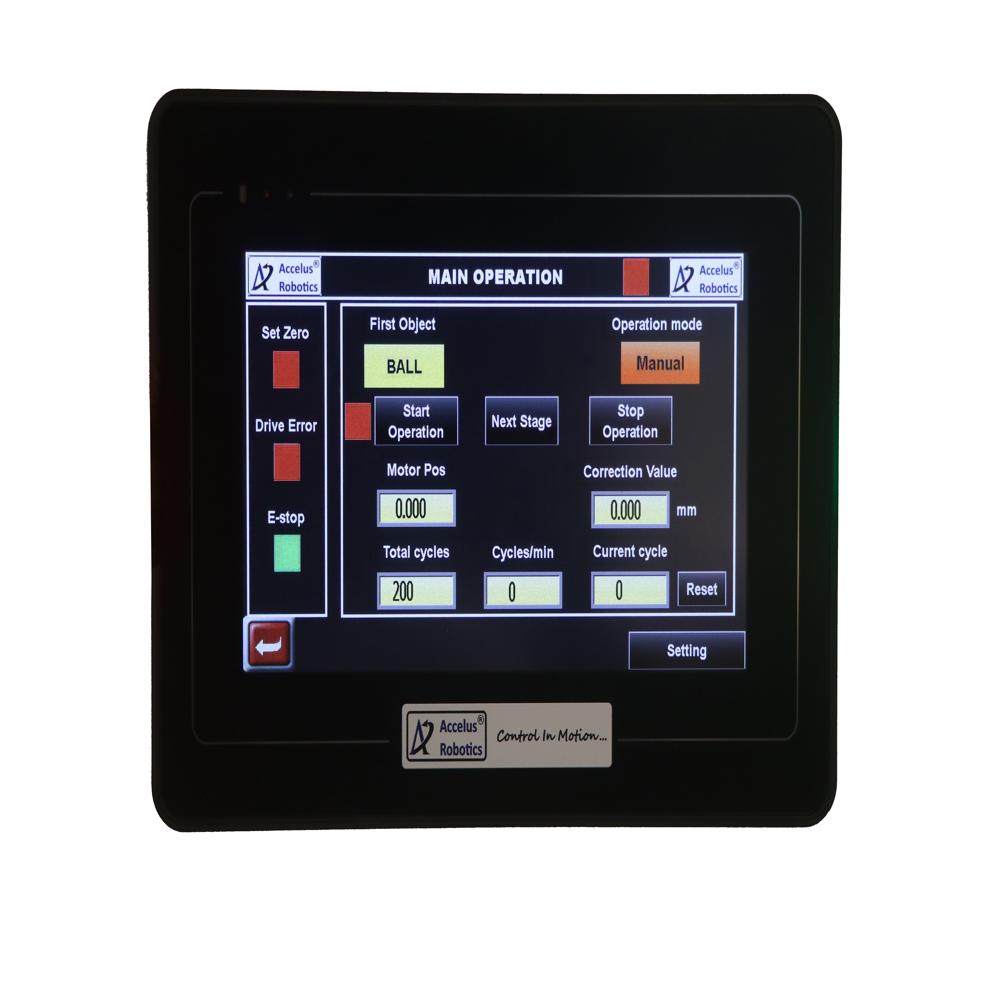

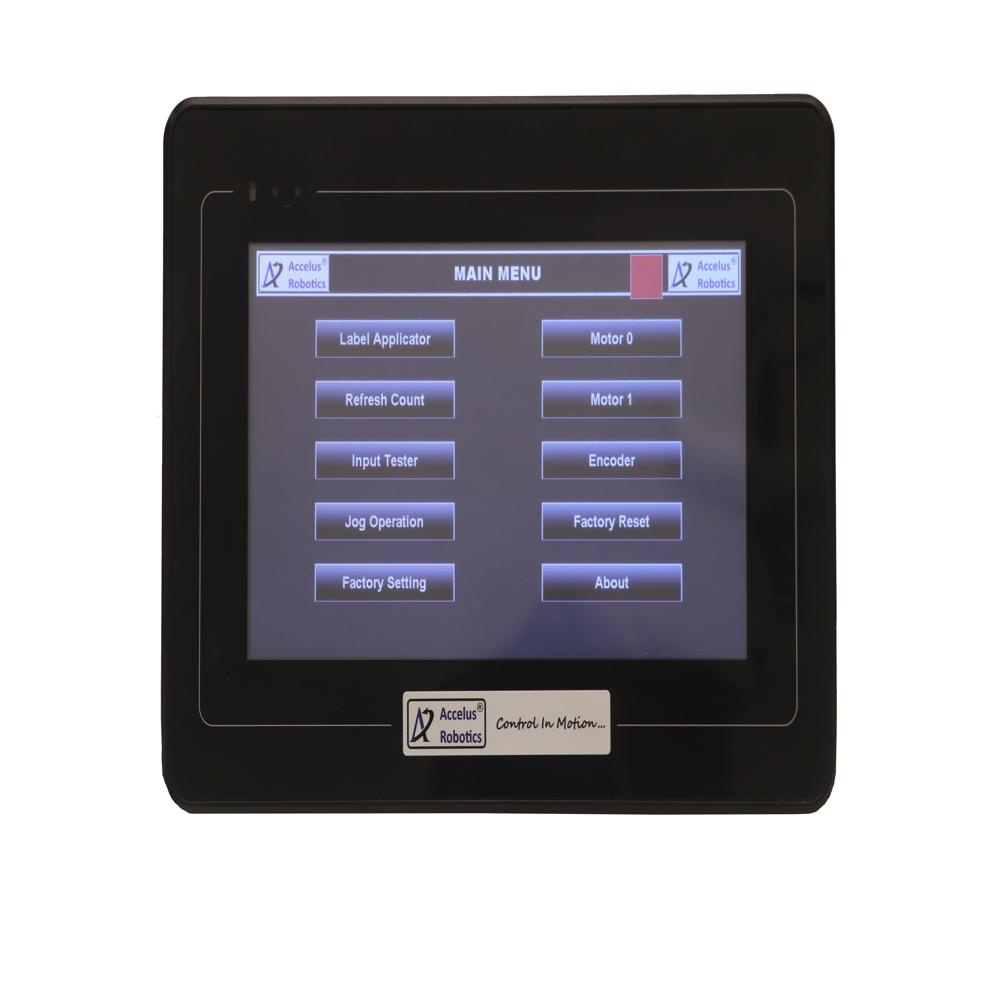

User-Friendly Interface:
o Intuitive software for programming and configuring motion profiles, making it accessible for both beginners and advanced users.
o Real-time monitoring of motor status, input signals, and output activations.

Flexible Communication Protocols:
o Compatible with various communication protocols (such as RS-232, RS-485, or Ethernet) for seamless integration into existing systems.
o Facilitates remote control and monitoring for enhanced operational flexibility.

Compact Design:
o Space-saving design suitable for integration into limited spaces without sacrificing performance.
o Durable construction ensures reliable operation in demanding environments.

Applications:
1. Ideal for automation tasks in manufacturing, packaging, and assembly lines.
2. Suitable for robotics applications, such as robotic arms and automated guided vehicles (AGVs).
3. Perfect for CNC machines requiring precise motion control with feedback capabilities.
4. This motion controller combines versatility, precision, and ease of use, making it an essential component for any motion control application. With dual motor capabilities and extensive I/O options, it provides the flexibility needed to tackle a wide range of automation challenges.
