PC-Based CNC Controller

Name: PC-Based CNC Controller
Brand: ACCELUS ROBOTICS PRIVATE LIMITED
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PC-Based CNC Controller Specification

Method
Subtractive Manufacturing

Hardness
Yes

Shape
Rectangular

Coating
Anodized Coating

Usage
Industrial

Size
Standard

Product Type
Cnc Controllers

Use
Industrial CNC Control Systems

Application
High-precision metal part production

Usage & Applications
Industrial

PC-Based CNC Controller Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

About PC-Based CNC Controller

4 axes CNC controller running with PC / Laptop based Software user interface running with high speed differential pulse & direction output for smooth operation. It is using 2D DXF or Plt files. FloydCNC converts this .dxf or .plt file to GCode internally & it will run the machine accordingly.

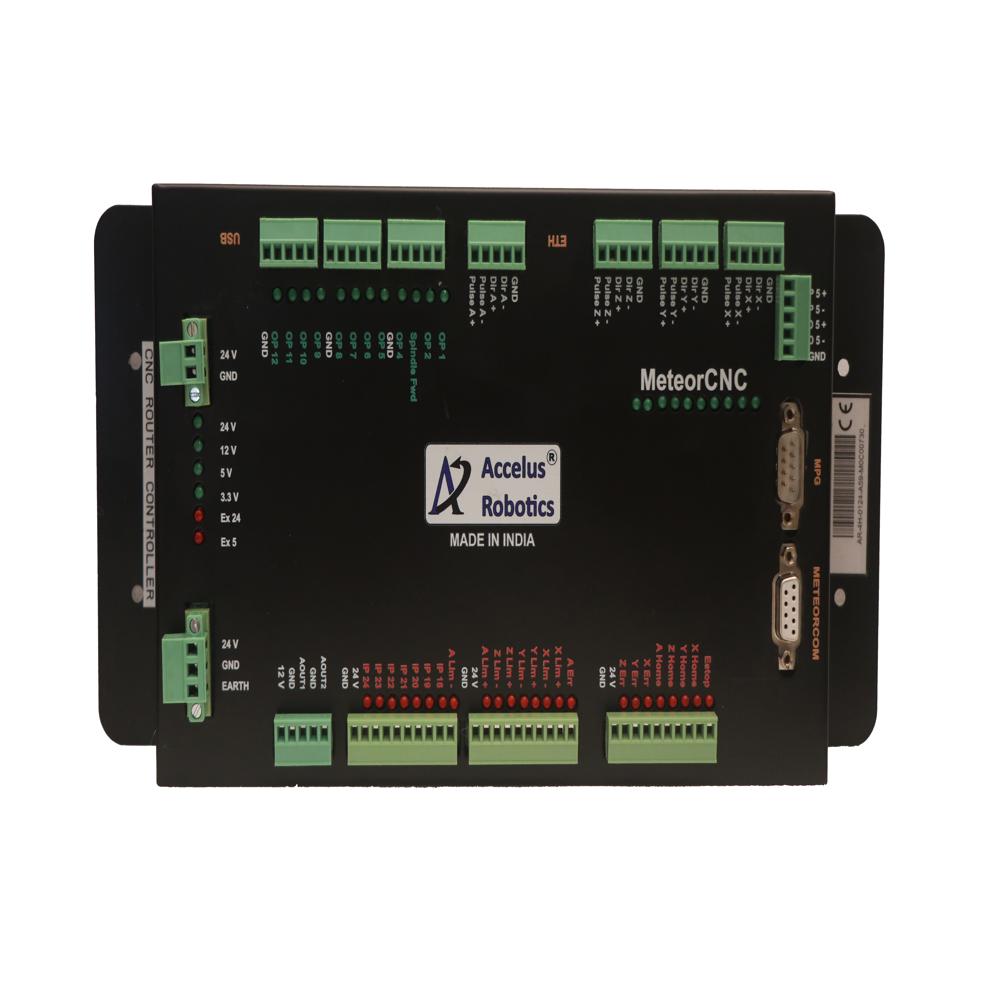

MeteorCNC 4F is a 4-axis CNC controller operated with pc based user interface called Floyd software. 4F series controller comes with 4 axis individual jitter free differential pulse and direction, 24 digital NPN inputs, 12 digital NPN outputs, 0-10v analog output for the spindle, high speed external encoder input and software license.

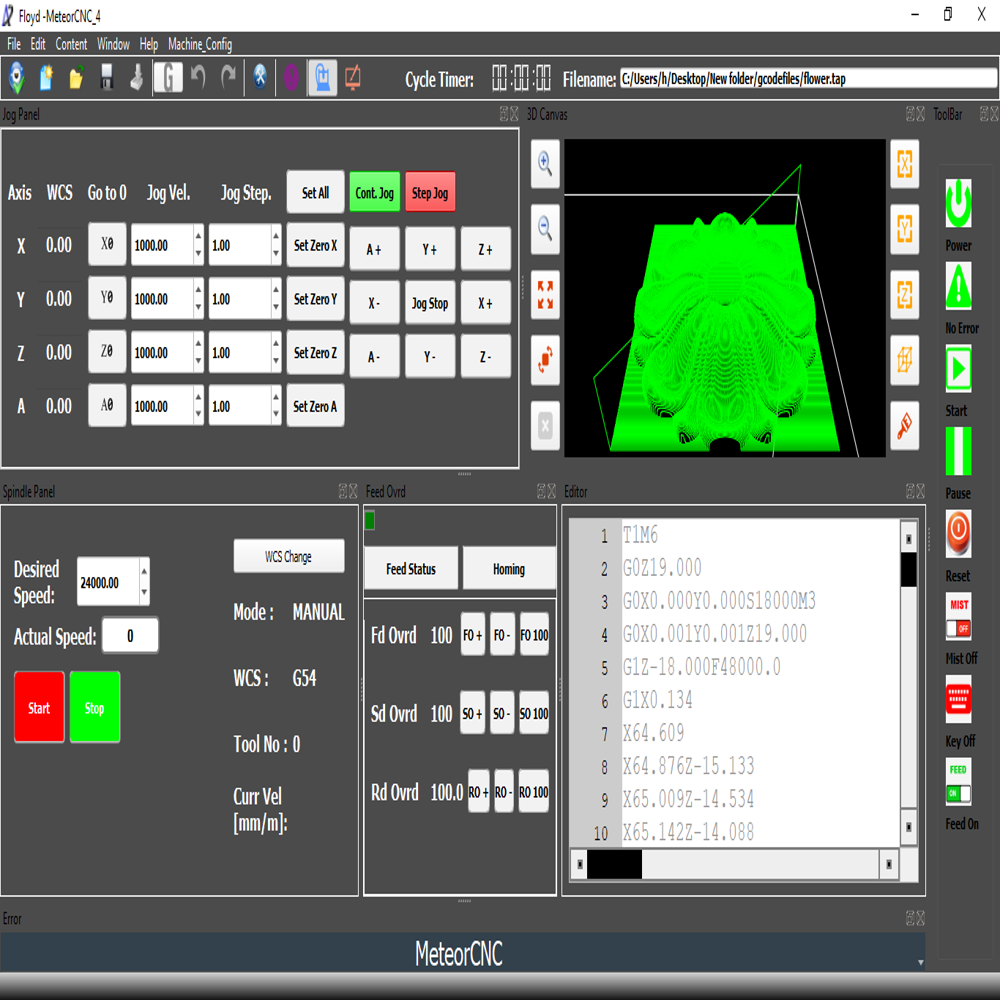

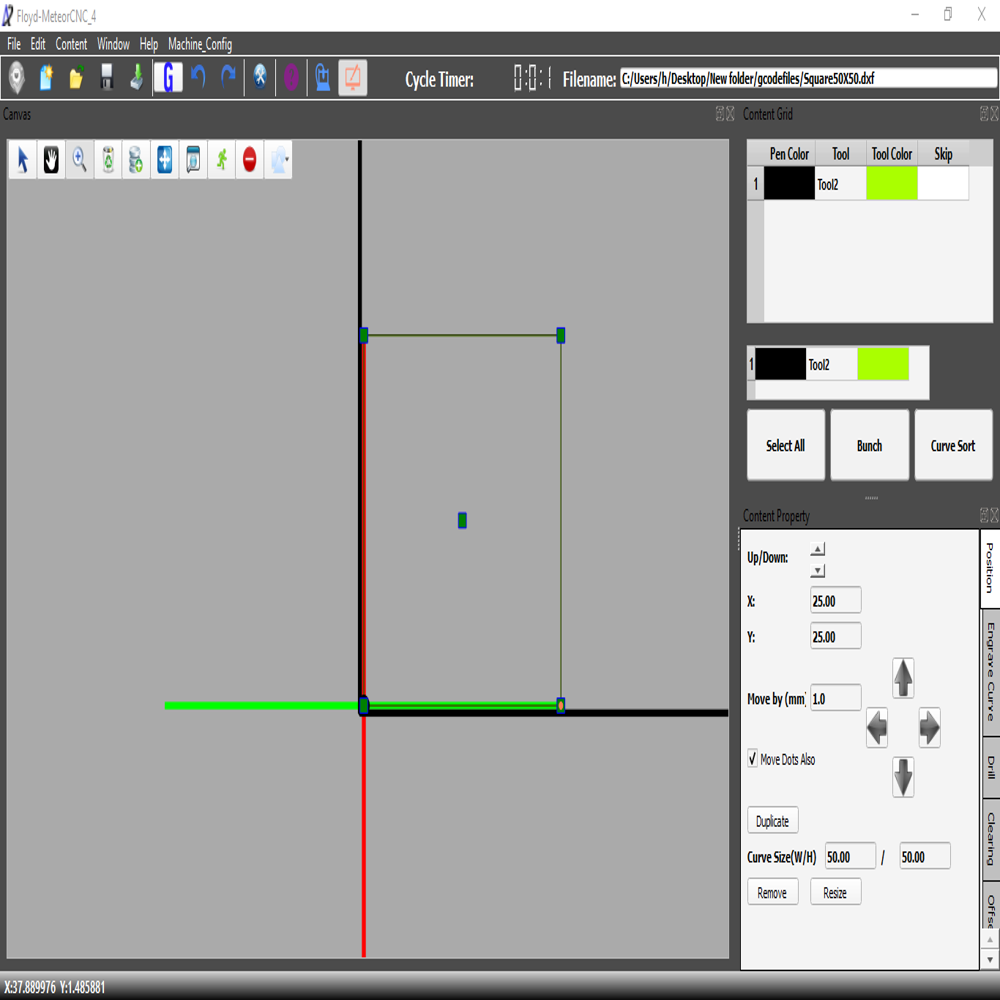

Floyd software can be installed in any windows 7 or windows 10 computer or Laptop with minimum specifications of the PC like 2Gb/4Gb RAM, 32GB SSD or HDD inbuilt graphics care also sufficient to run the software with 3D display. Software running inside computer communicates with control card over the lan cable. User interface has facility for inbuilt CAM generation using 2D .dxf or .plt files. Auto Centering facility provides additional ease to user to setup the job and finding the center in both X and Y direction using graphical interface. 3D view provides wire mesh interpretation of the toolpath where user can zoom in, zoom out, rotate, pan etc to view job going to go for cutting or engraving. However, as the name indicates, 4-axis machining adds an axis of rotation to the standard X, Y, and Z movement. This extra movement is rotation
along the X-axis or Y axis, which forms a fourth plane. The rotation may be accomplished by moving the tool or the workpiece which is being machined, and the axis of rotation may be parallel to or perpendicular to the tool surface.
Software also provides machine boundaries for ease of user operation and ware the user if any movement is going to violate the machine boundaries prior to the job start which helps user for unnecessary damage in tool or workpiece and saving lots of user time making him productive in the work.
Best suitable for die and mold making machine, laser machines, plasma cutting machine, multi side wood drilling and slot application etc.
