4 Axis CNC Controller

Name: 4 Axis CNC Controller
Brand: ACCELUS ROBOTICS PRIVATE LIMITED
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4 Axis CNC Controller Specification

Coating
Anodized Coating

Shape
Rectangular

Method
Subtractive Manufacturing

Hardness
Yes

Product Type
4 Axis Cnc Router

Use
Industrial CNC Control Systems

Application
High-precision metal part production

Usage & Applications
Industrial

4 Axis CNC Controller Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

About 4 Axis CNC Controller

4 axes DSP router controller manufacturer with handheld running upto 500khz differential pulse & direction output for smooth operation with 24 Inputs, 12 Outputs, 1 Analog output and encoder facility available.

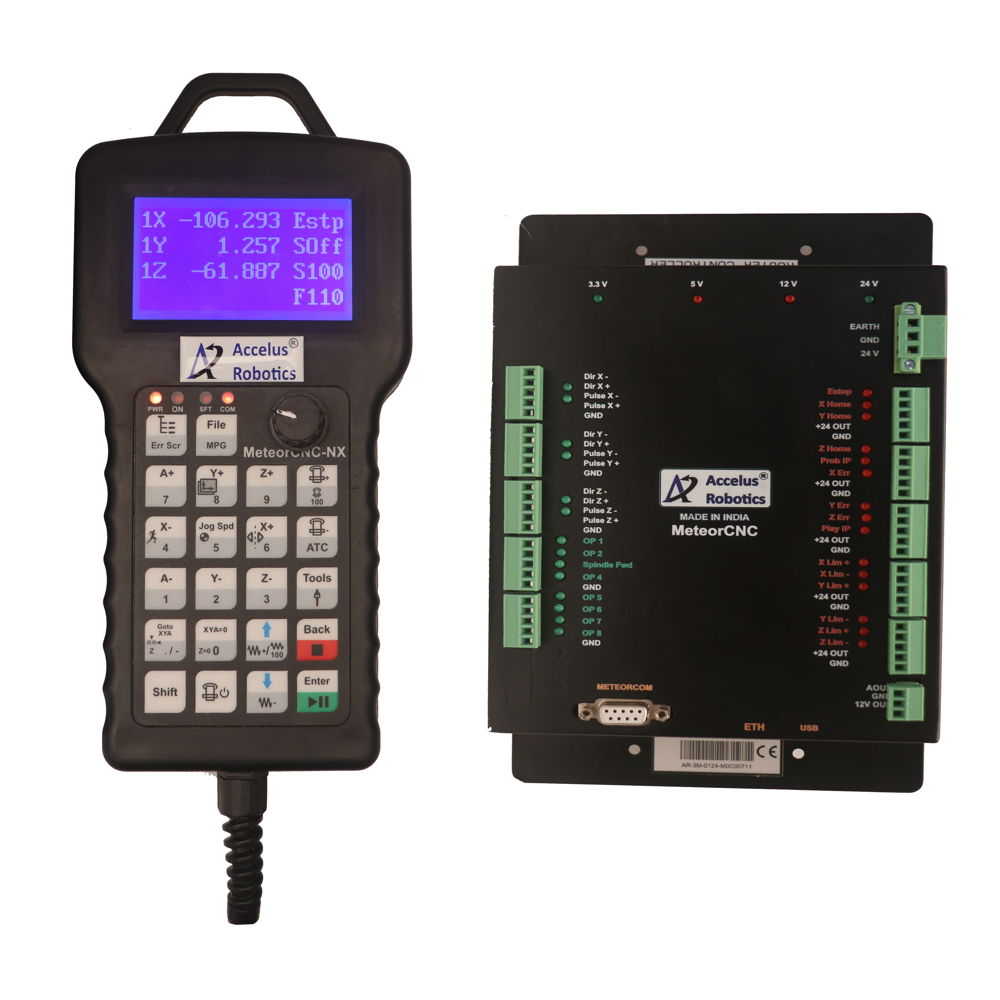

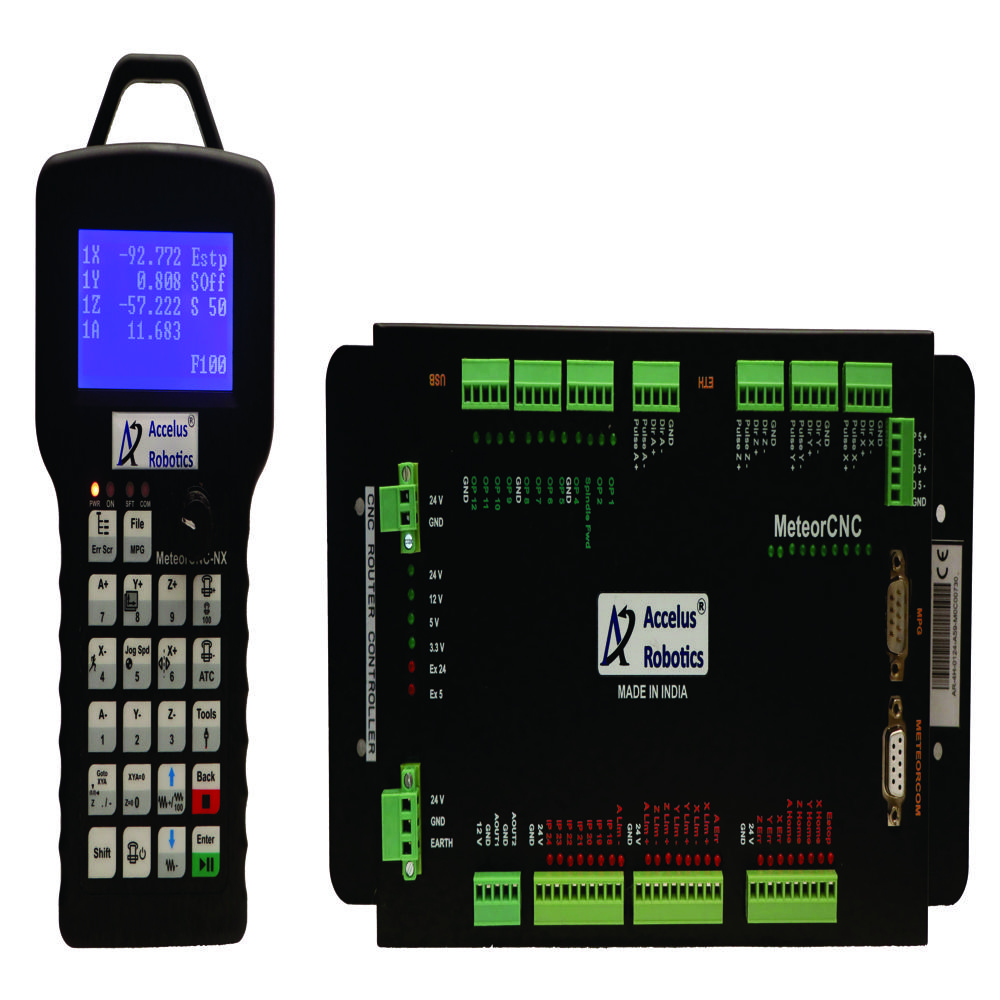

MeteorCNC 4H series is a 4 axes DSP router controller operated with handheld provides up to 500khz jitter free differential pulse & direction output for smooth motion at the motor end. It comes with 4 axis control card and handheld and inbuilt MPG available with few extra inputs and outputs with additional facility of external high speed differential encoder input which can be used for either MPG remote for jogging of axis OR spindle encoder feedback for tapping cycle.
A 4-axes CNC machine functions much like its 3-axes counterpart. With addition of one extra rotational motion from the controller makes it very special for making critical works. The workpiece is in a stationary position, and the cutting tool works on it to remove material and mold the desired part. However, as the name indicates, 4-axis machining adds an axis of rotation to the standard X, Y, and Z movement. This extra movement is rotation along the X-axis, which forms a fourth plane the A-axis OR rotational along Y-axis.
The rotation may be accomplished by moving the tool or the workpiece which is being machined, and the axis of rotation may be parallel to or perpendicular to the tool surface. The orientation of the axis of rotation determines how easy it is to machine certain features and undercuts on a given machine.
4 individual simultaneously running axis machine is majorly used in wood working / router machine industries for making statues, stone cutting/ engraving machine for pillar making etc. making the job faster and easier for the users.
